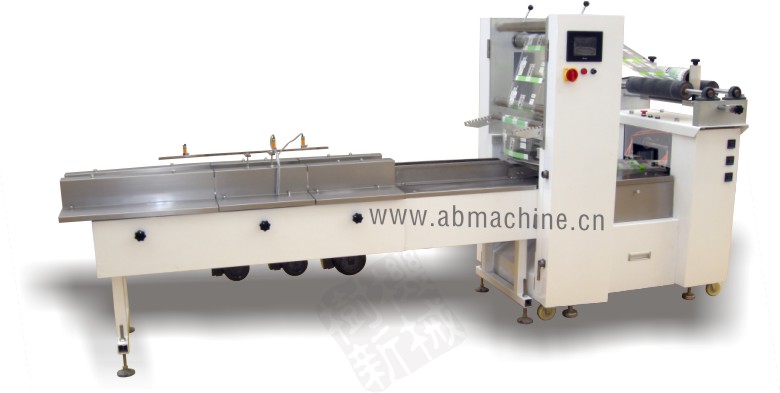

SMZ-600 Pillow packing machine(suitable for packing big size product and product with plate)

Price: (Standard configuration)
　　Standard Fob Shanghai Port price: *****USD
　　Control system: four-motor drive
　　Human-machine interface:colorful touch screen
　　Spare parts: each present a set
　　Attachment: present a coding machine
　　Warranty: 1year
　　Warranty period: 12 months for free
　　After sale service: Free training, free installing, free spare parts
　　Payment: TT, 50% for deposit, balance after machine finished.
　　Shipping: Standard sea wooden case
　　Special need: OEM is ok

    Features

SMZ - 600/900 automatic packing machine is designed by our company independent , it is suitable for large articles or big packing with box , original four-motor drive, digitizing input parameters, quickly alignment at the cursor, with three-dimensional angular institution at the same time, aplly to the big packing with box, packing, sealing smooth and nice, angular symmetry, on the stability, is the ideal packaging equipment of big packing.apllied object, for example: in the moderate packaging of biscuits, european-style cakes two packing , four packing, quick-frozen box food , paper roll packing
        1. Patent product is characterized by special structure, convenient operation and stable performance;
　　  2. Centerless positioning of the roll membrane can use the roll membrane with larger diameter and the membrane sending precision will not be influenced by its weight;
　　  3. Man-machine interface: bag length, material level, cursor place, coding, air-flushing and other functions can be realized with digital setting; Directly inputting on the screen and then saving for debugging for the next time;
　　  4. Fault self-diagnosis function makes it easy to display the fault;
　　  5. Specially designed bag holder and lifting horizontal sealing structure can flexibly adapt to the packaging materials in different specifications;
　 　 6. You will finally select your favorite one among several optional configurations and perfect functions;
　　  7. It is used with SMT-160, to iron the sealed mouth on both ends after packaging;
　 　 8. Material supply system can be automatically matched to realize automatic feeding;

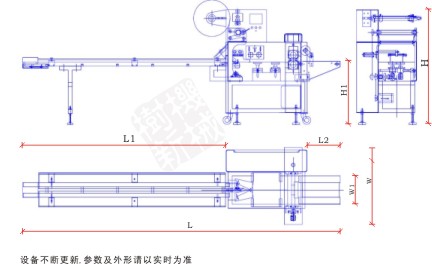

    Parameter

Model　　SMZ-600 　　
Fillm width 　600mm 　　　
Bag length　 150-500mm 　
Product width 　50-150mm 　　
Product thickness　 10-120mm 　　
Film roll diameter　 <450mm　
capacity　 10-150bag/min　
power 　220V/4KW　
weight 　750KG　　　
        L 　    3950mm
        W 　    950mm
        H 　    1450mm
        L1　     2500mm
        L2　     400mm
        W1     　380mm
        H1　     800mm

Model　　SMZ-900 　　　
Film width 　900mm
Bag length　 OEM
Product width 　OEM
Product height　OEM
Film roll diameter　 <400mm
Packing Speed　 10-100bag/min
Power 　 220V/4KW
weight 　 850KG
        L 　    3950mm
        W 　    1500mm
        H 　    1450mm
        L1　     2500mm
        L2　     400mm
        W1     　600mm
        H1　     800mm

It also can be OEM to meet your special request of the packing range of the size.

    Video Related

SMZ-600 Packaging paper rolls assembly line

SMZ-600 Pillow packaging machine packaging paper rolls

Packaging machine for packaging of beef, lamb, pills, quick-frozen food

SMZ-600 Pillow packaging machine packaging petri dish

SMZ-600 Pillow packaging machine packaging gloves

    Samples Related

    Sample Related

This machine matching with SMZT-160 can be for packing toilet paper roll, it can finish packing and heating shrinking at the same time. It also can be used for packing beef slices, mutton slices, baozi, steamed buns with plate.

( Beef slices packing machine, mutton slices packing machine, paper roll packing machine).
